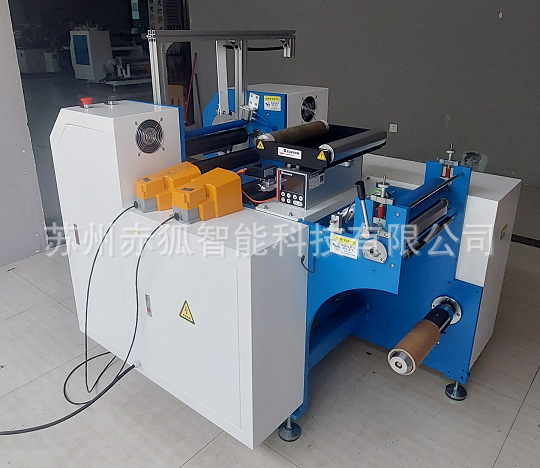

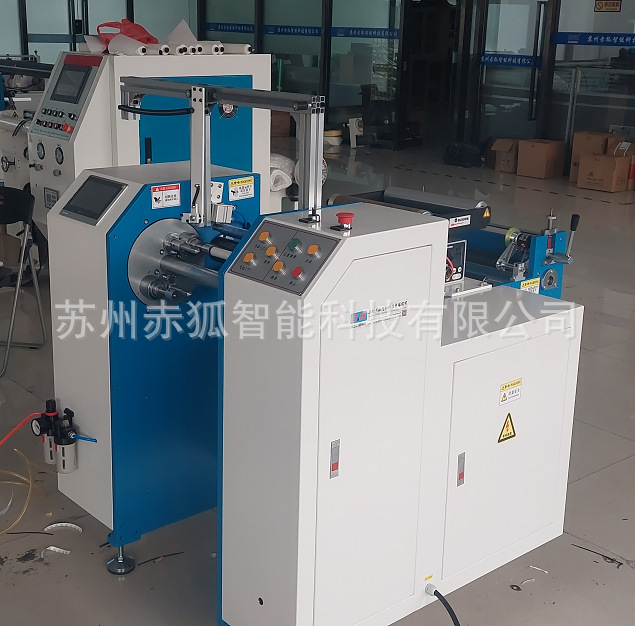

适用于：光伏台面纸、卷筒纸、特种纸、无纺布等新材料复卷。

优点：

1.效率高；速度快；每15米/6秒

2.收卷整齐；高级过程纠偏，卷边整齐

3.节省材料；不用修边，直接复卷，节约材料

4.操作简单；触摸屏PLC控制，操作简单

性能特点：

1．主机传动部分：采用台湾AC马达搭配变频器作为切卷材料传动，加减速稳定快速。
2．中央控制单元：使用可程序中央控制，同轴中可设定多种尺寸（最多20种模式）一次性自动转换切割，做到无人操作自动完成。
3．操作面板部分：操作接口采用LCD触控屏10寸，可直接在屏幕上设定各种切卷条件及运转装况。
4．电机控制系统：中央控制系统为PLC可程式控制器，同轴中可设定多种尺寸，电脑于切割时自动调整切割宽度。
5．切卷定位系统：使用日、欧洲系列品牌伺服马达控制，高精度进口滚珠螺杄进行尺寸定位及使用线性滑轨承载刀座，定位动作精确平顺。
6．进刀定位系统：使用日、欧洲系列品牌伺服马达控制进刀方式，可拟人化做三段式速度进刀切卷，提高效率并得到最好品质。
7．圆刀自动角度调整：使用日、欧洲系列品牌的伺服马达计算圆刀角度转向，因应不同材料做不同角度变化（角度调整范围±8°）当切割平面不佳时，可直接变换切割角度，可减少换刀次数，避免了手动调角度的麻烦，大大提高生产效率。
8．快速换轴装置：本机其有两种切割轴可供选用，采用快速换轴方式，因应不同材料需求。
9．（选配）内置双马达自动磨刀机，始终保持刀口锋利，操作简便。
10．（选配）安装了大型安全防护罩，大大提高了机器操作的安全性能。

1. Main Engine Transmission part: uses the Taiwan AC motor to match the frequency changer as the cutting material transmission, the acceleration deceleration stable fast
2. Central Control Unit: the use of programmable central control, the same axis can be set in a variety of sizes(up to 20 models) one-time automatic conversion cutting, so that unmanned operation automatically completed.
3. Operation Panel section: operating interface using LCD touch screen 10 inches, can be directly set on the screen on a variety of cutting conditions and operating condition,
4. Motor control System: the central control system for PLC programmable controller, the same axis can be set a variety of sizes, the computer in the cutting automatically adjust cutting width.
5. Cutting Positioning System: the use of Japan, Europe Series brand servo motor control, high-precision import ball screw size positioning and the use of linear slide bearing knife seat, accurate and smooth positioning action
6. Knife Positioning System: the use of Japanese, European series of brand servo motor control into the knife, can be personified to do three-section speed into the knife cutting volume, improve efficiency and get the best quality.
7. Round knife Automatic angle adjustment: Uses the Japanese, the European Series Brand Servo motor calculates the round knife angle different material to do different angle change(angle adjustment range +8)when cutting flat When the face is not good, can directly transform the angle of cutting, can reduce the number of knife change, avoid the trouble of manual adjustment angle, greatly improve production efficiency.
8. Quick-change axis device: This machine has two kinds of cutting shafts to choose from, adopt the fast changing axis mode, because of different material needs.
9.(optional)built-in dual-motor automatic sharpening machine, always maintain a sharp edge, easy to operate
10. (optional) installed a large security shield, greatly improve the safety of the operation of the machine.
